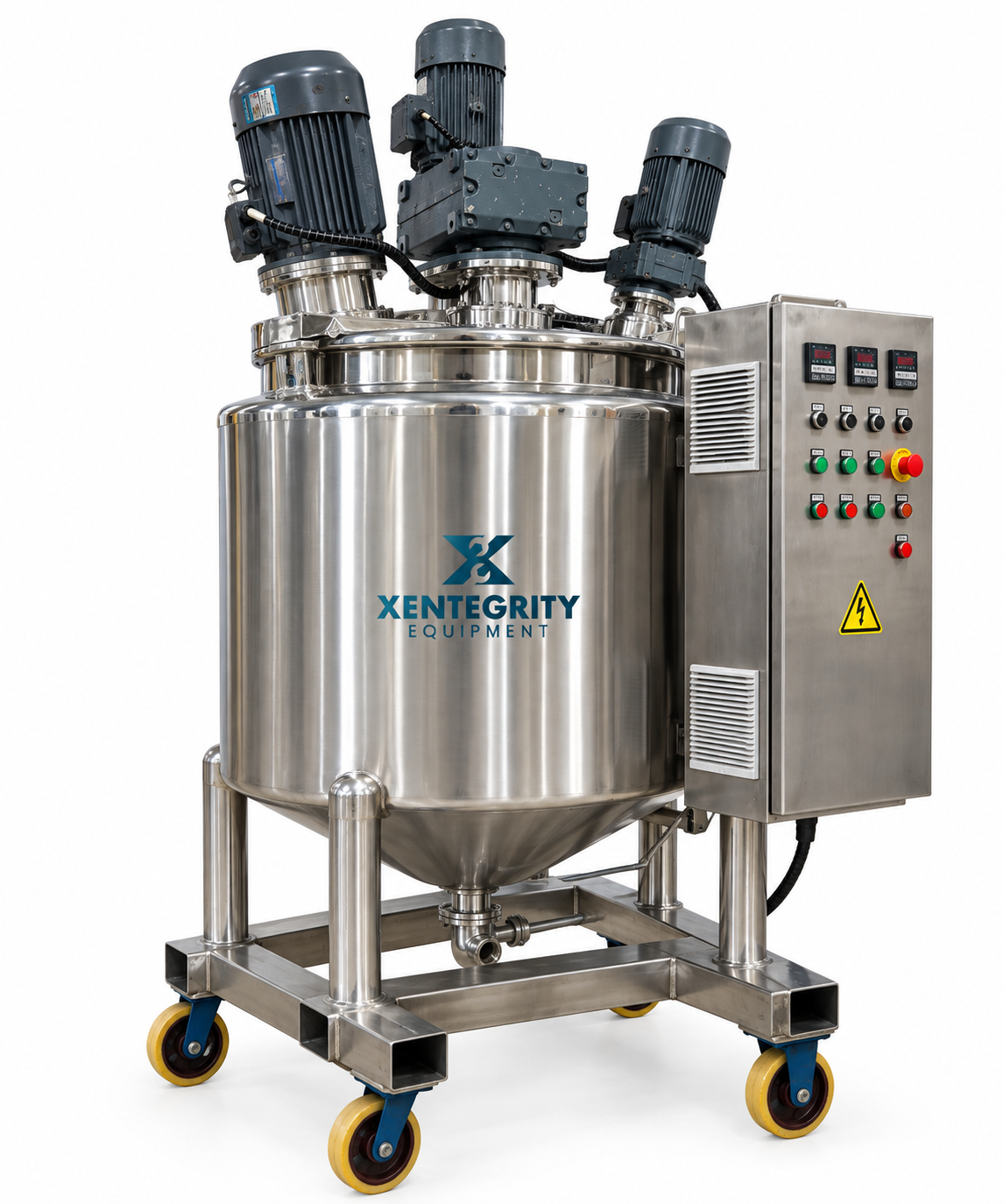

This Xentegrity Mixing, Dispersing & Emulsifying Tank was engineered as a versatile processing solution that combines three complementary mixing technologies—high-speed dispersion, high-shear emulsification, and low-speed anchor agitation within a single vessel. This integrated three-in-one system is designed to efficiently manage multiple stages of the production process, from rapidly incorporating powders into liquids and breaking down agglomerates to high-shear particle reduction, homogenization, and continuous product circulation, ultimately producing a smooth, consistent, and uniform final product.
Custom configurations

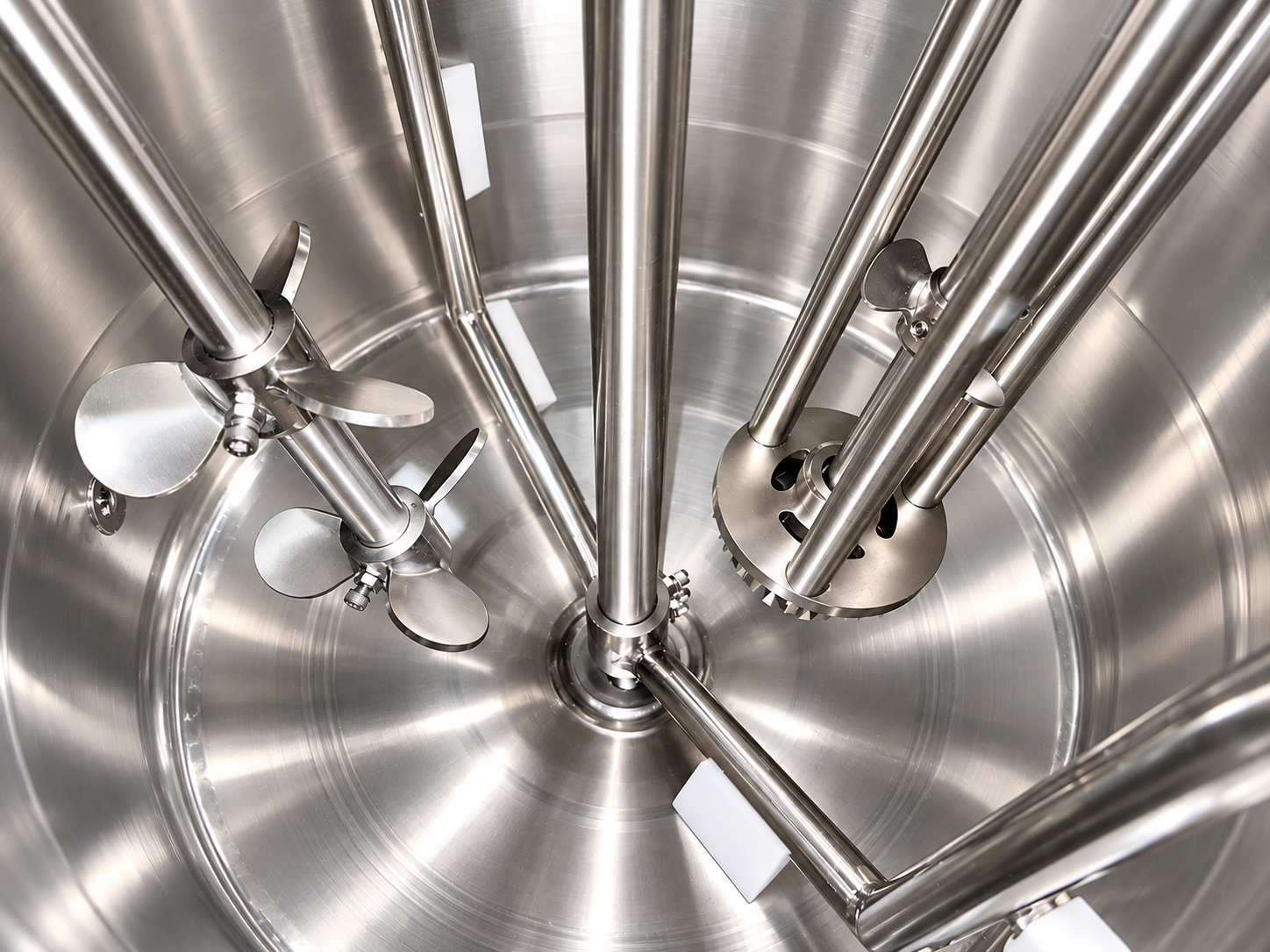

The system combines three complementary agitation technologies:
High-Speed Disperser
A high-speed dispersing disc rapidly incorporates powders into the liquid phase while helping break apart agglomerates and improve initial dispersion.
High-Shear Emulsifier / Homogenizer
The high-shear emulsification system provides intensive particle reduction and homogenization to produce a fine, consistent mixture.
Anchor Agitator with Wall Scraping
The low-speed anchor agitator promotes complete product circulation throughout the vessel while continuously sweeping the tank walls. This helps maintain consistent temperature and product concentration, particularly when processing higher-viscosity materials.
At Xentegrity, each mixing system is engineered around the customer’s specific product and processing requirements rather than a one-size-fits-all configuration. Systems can be manufactured in 304 or 316L stainless steel and configured with features such as CIP capability, sight glass level indicators, sanitary valves and fittings, dual-hinged covers, and individual VFD controls for each agitation system.
Tank capacity, agitation configuration, operating speeds, heating and cooling requirements, sanitary components, controls, and other features can be tailored around the customer’s product, viscosity, batch size, process, and desired finished consistency.
Designed for processing applications across industries including:
(12 Month Limited Warranty)
