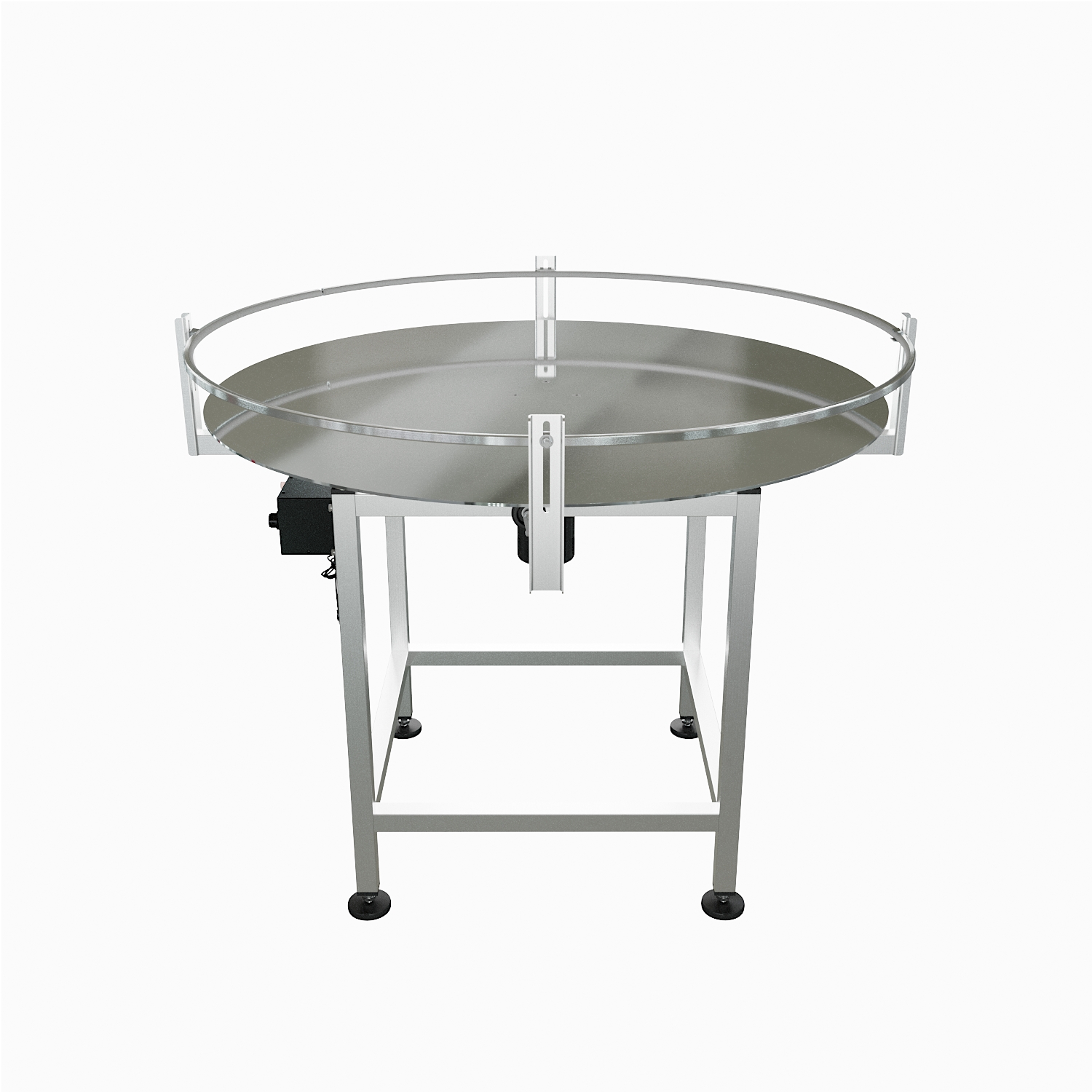

Stainless Steel Open Frame Accumulation Rotary Table

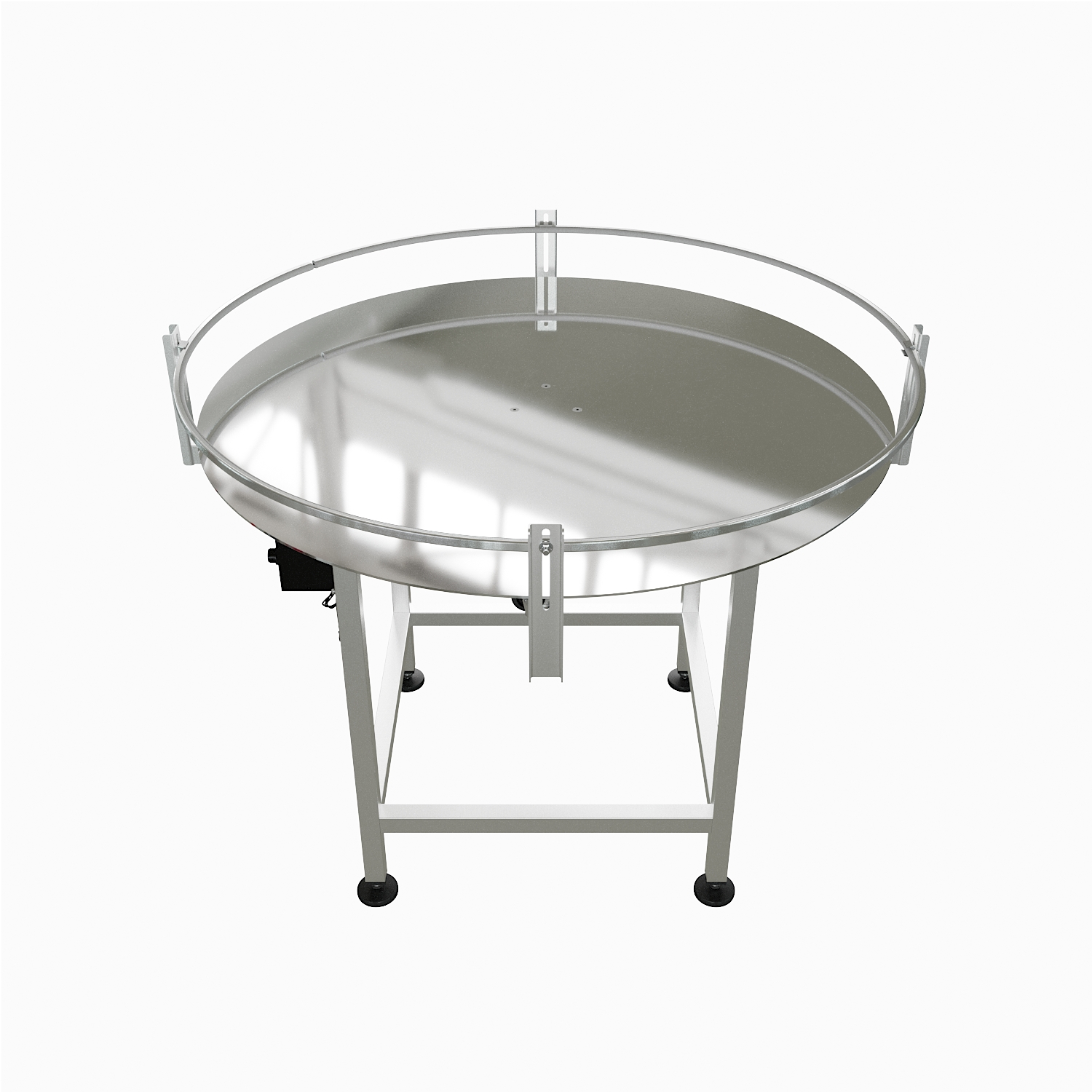

Stainless Steel Open Frame Accumulation Rotary Table - Image 2

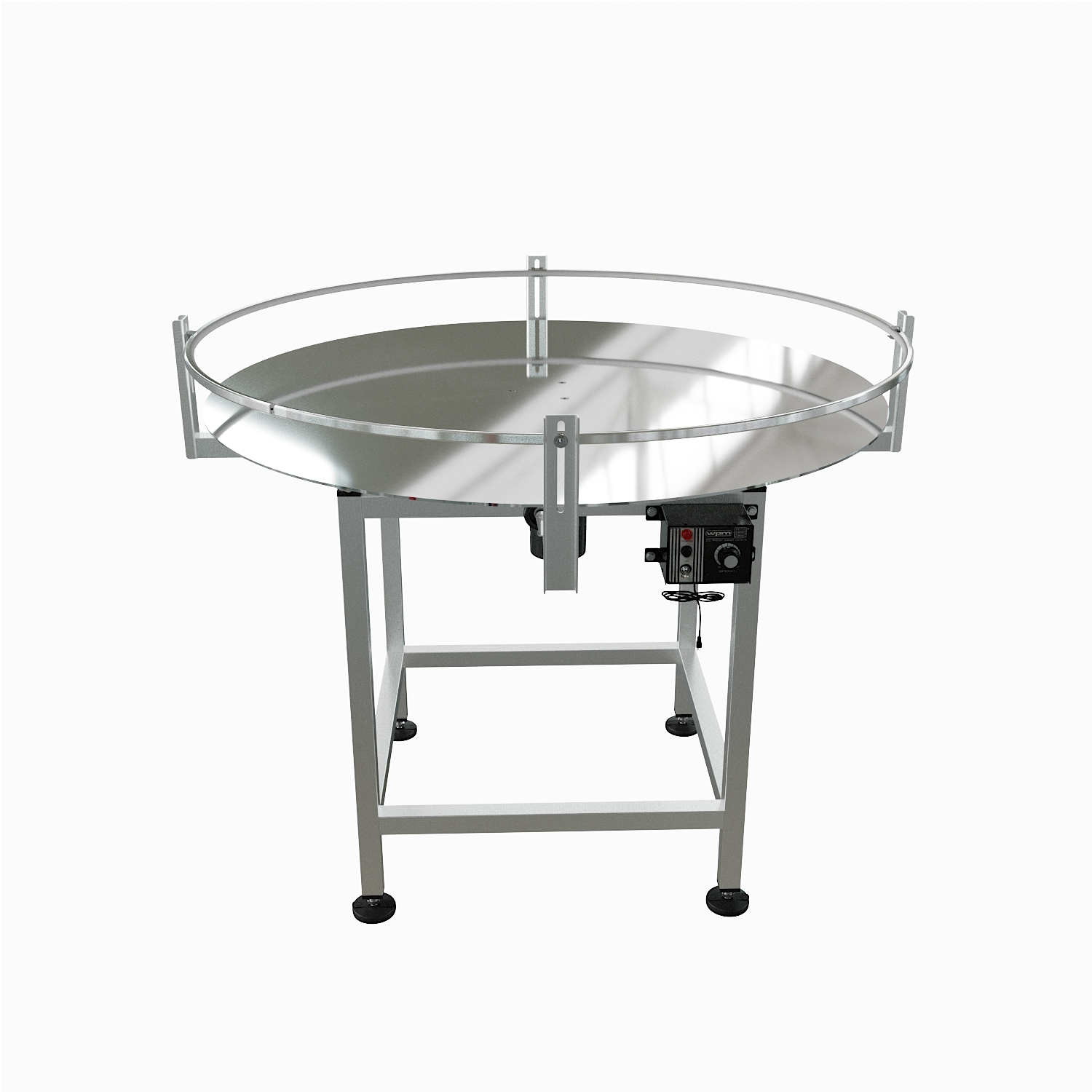

Stainless Steel Open Frame Accumulation Rotary Table - Image 3
Stainless Steel Open Frame Accumulation Rotary Table - Image 4

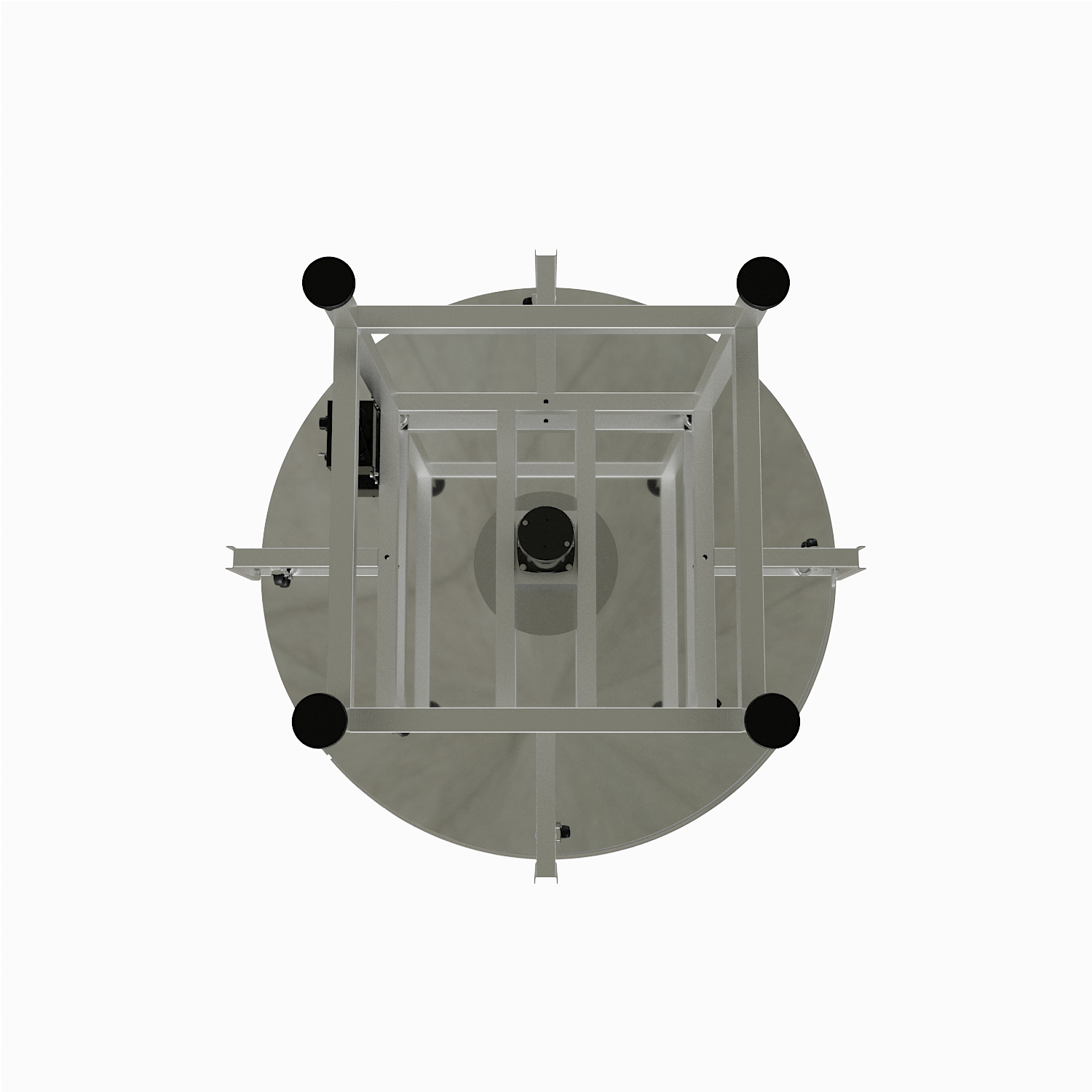

Stainless Steel Open Frame Accumulation Rotary Table - Image 5

Stainless Steel Open Frame Accumulation Rotary Table

Inventory in Miami, FL

Ready to Ship Nationwide

  • ROT-024

Rotary tables can be used to unscramble product and feed a conveyor, or as a buffer space to accumulate product until the downstream conveyor is ready. Accumulating rotary tables are designed to collect filled containers from a filling line to prevent slowdowns by quickly removing the finished product from the conveyors during operation. They can be set for clockwise or counterclockwise rotation.

*Available in Table Diameter Size: 24 Inches, 36 Inches, 48 Inches, Or 60 Inches*

$3,550.00

Description

Main Features

  • Made in USA with 100% UL certified components
  • Stainless steel open frame or enclosed cabinet
  • Adjustable leveling pads
  • Disk thickness 1/8” (11 gauge)
  • Counter and clockwise rotation
  • Bodine DC drive for rotation speed control



Technical Data

  • Bodine DC motor, 3/16 HP, 6 RPM, 350 lb/in
  • Machine electrical requirements: 115 volts / 1 ph / 60 hz
  • Rotary table standard size: 36”, 48”, 60” (other sizes upon request)
  • Floor to disk: 35” to 39”
  • Adjustable guide rail height: 0” to 5”
  • Max weight capacity: 200 lbs
  • Speed: 0 to 8 RPM



Optional Features

  • Tool-less bottle orienting guides
  • Infeed table for hand packing applications or to push load containers onto rotation disc
  • Locking casters
  • Dual guide rails
  • 4” stainless steel guide rails
  • Transfer plate for smoother container transition (side or straight mount)



Warranty

  • 12 months (limited warranty)
