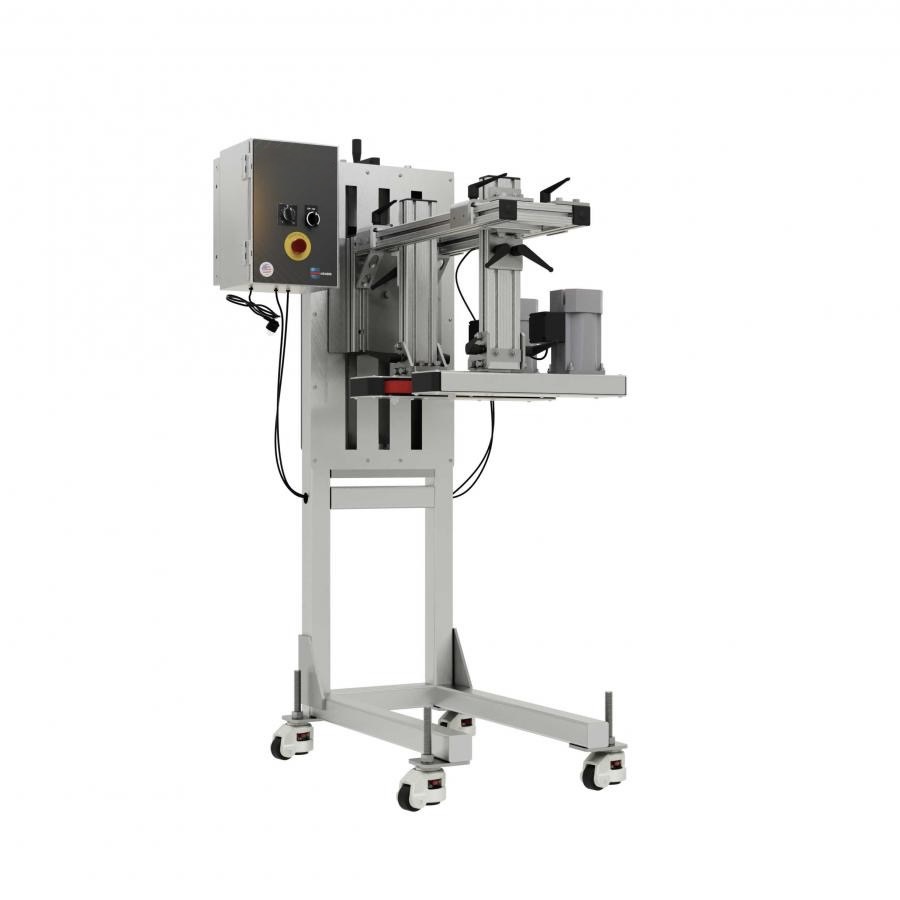

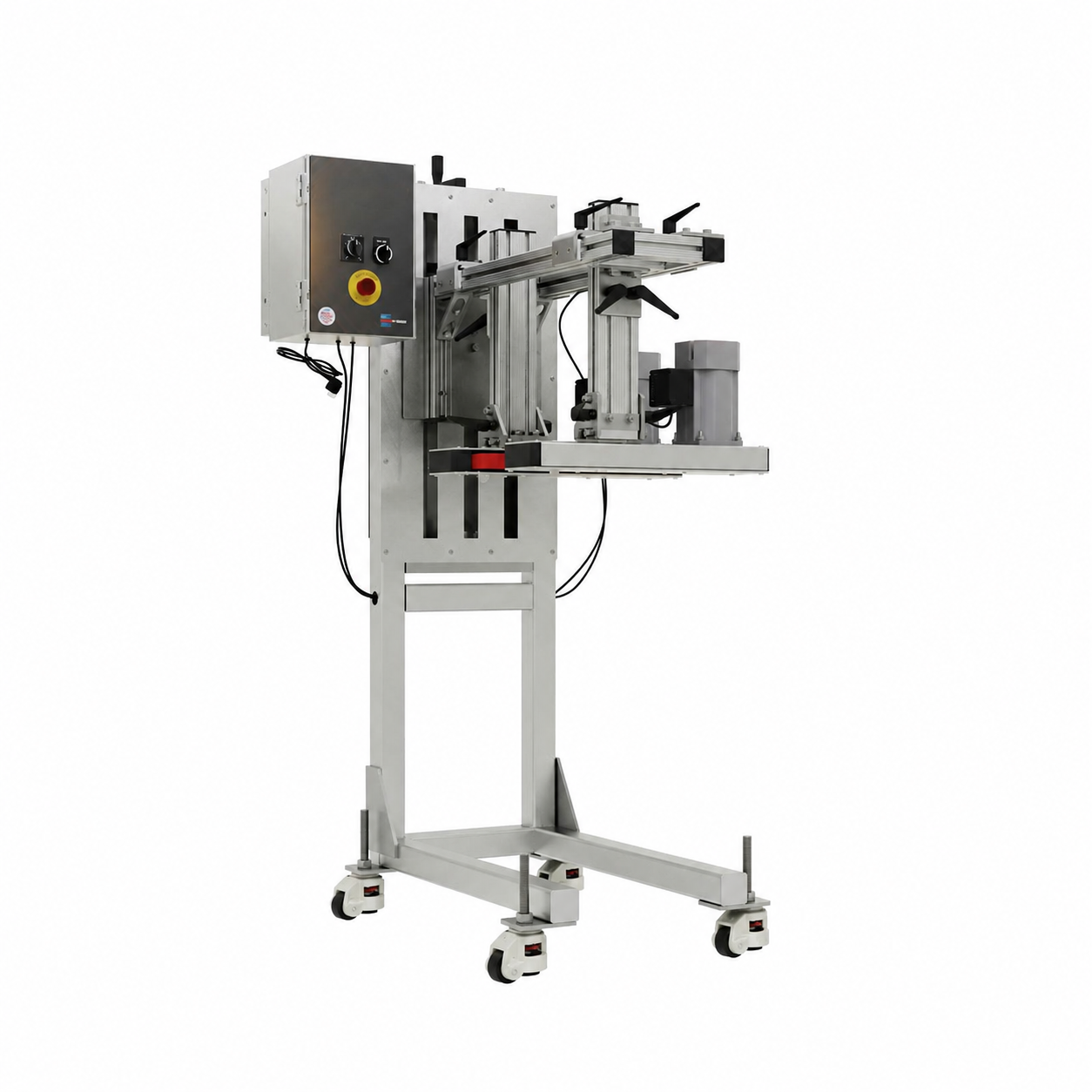

C-Frame Gap Transfer Hugger Belt Conveyor

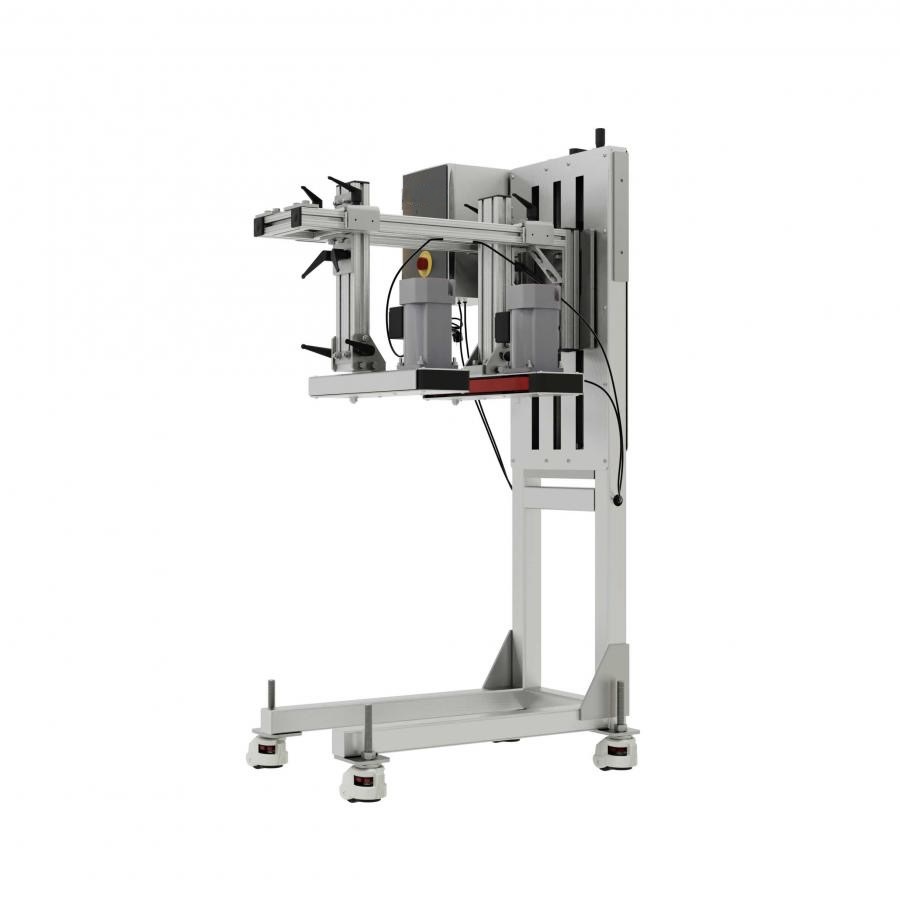

C-Frame Gap Transfer Hugger Belt Conveyor - Image 2

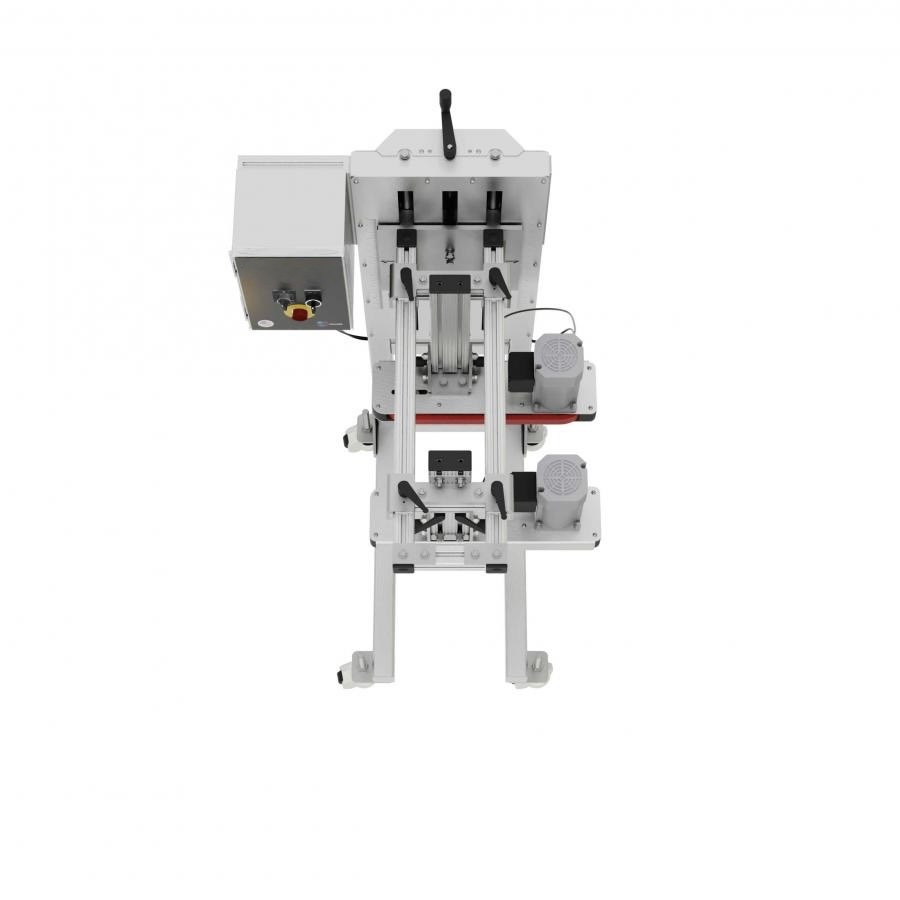

C-Frame Gap Transfer Hugger Belt Conveyor - Image 3

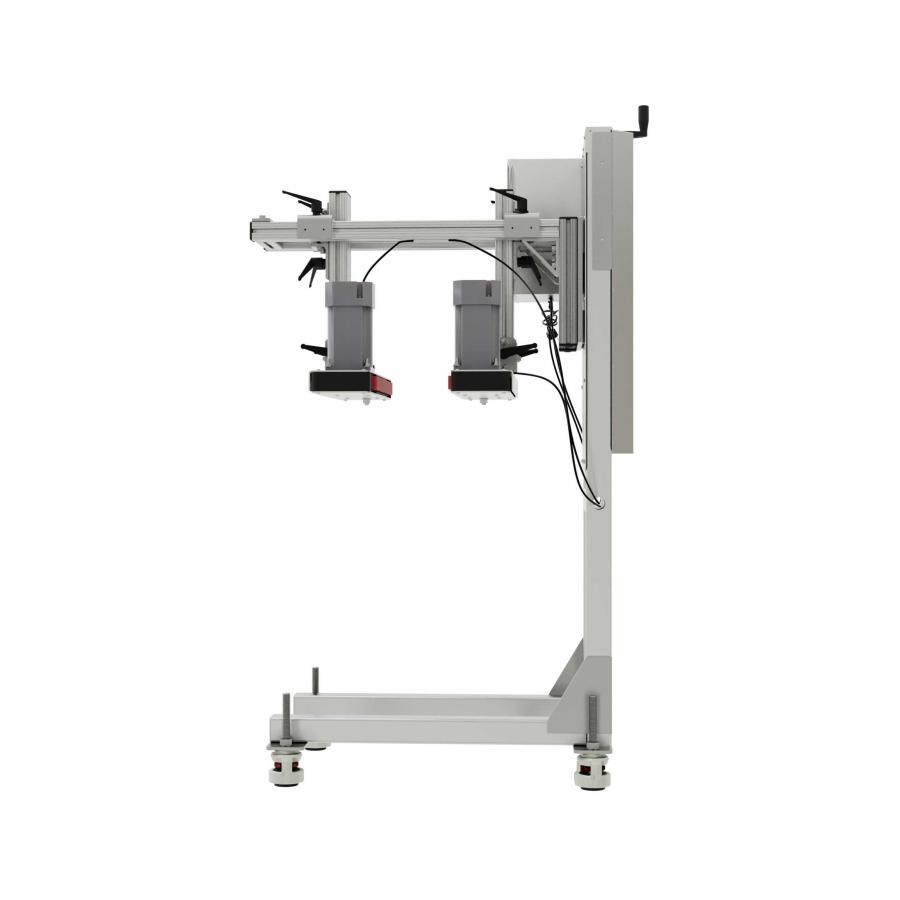

C-Frame Gap Transfer Hugger Belt Conveyor - Image 4

C-Frame Gap Transfer Hugger Belt Conveyor

Made In USA

Inventory in Miami, FL

Ready to ship nationwide

  • HB1201C

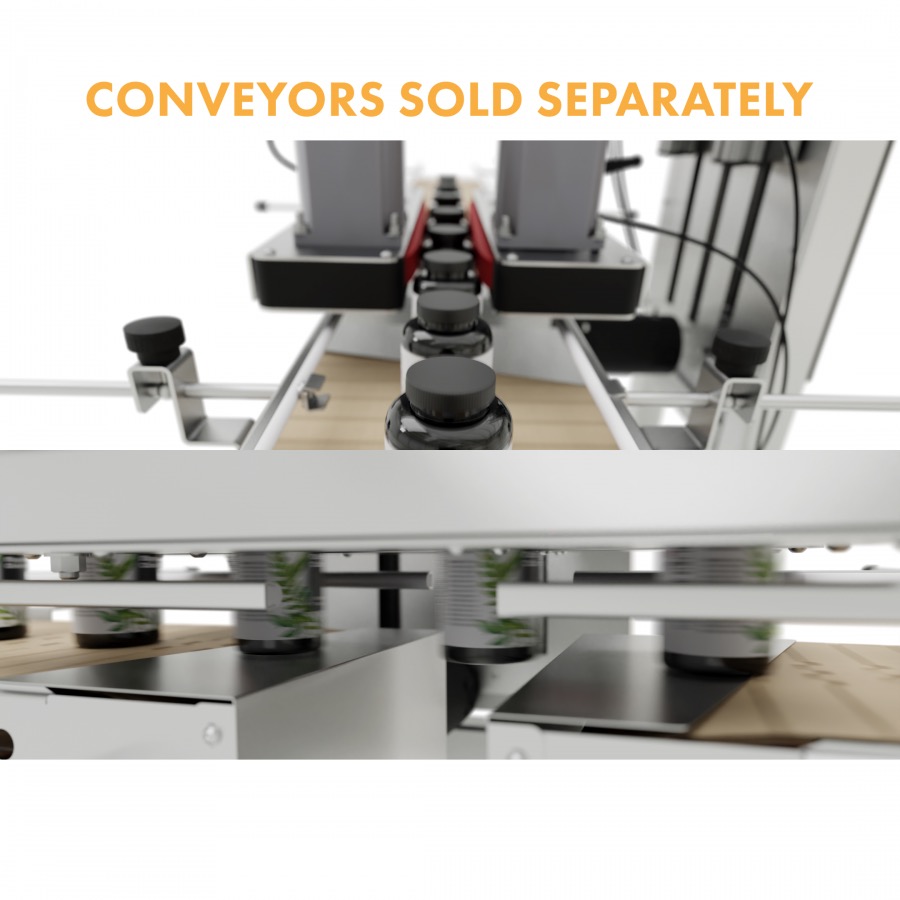

The Gap Transfer Conveyor is designed for smooth, controlled transfers between conveyors using precision hugger belts to securely grip containers and prevent tipping. Ideal for bottom coding, label inspection, de-pucking, and product spacing. With tool-less, independently adjustable hugger belts, it accommodates containers up to 8″ in diameter and 13″ in height. Its compact C-frame design allows for easy integration into existing lines, even in tight spaces.

$4,850.00

Description

Main Features
  • Manufactured in the USA using 100% UL-certified components
  • Durable welded stainless steel and aluminum frame
  • Tilting head design accommodates tapered bottles
  • Height-adjustable for versatile line integration
  • All adjustments include position indicators for easy recipe setup
  • Emergency stop (E-stop) push button for safety
  • Variable speed operation up to 80 ft/min
  • Built-in pinch point protection for operator safety
  • Ratchet-style locking casters

 Technical Data

  • Motor: AC Brother gearmotor, 1/10 HP, 90 RPM, 74 in-lbs, 230 VAC 3PH
  • VFD: Teco, Input voltage 115 PH / Output voltage 230 VAC / 3PH
  • Electrical requirements: 115 V / 1 PH / 60 Hz / 5.7 Amps
  • Belt width adjusts to: 0-8”
  • Max container height: 13”
  • Belt size: 12” L x 1” H
  • Floor to belt height: Minimum:26”  Maximum: 44”
Optional Features
  • Print head bracket
  • Bottle sliding plate
  • Washdown duty motor
Warranty
  • 12 months (limited warranty)
