Description

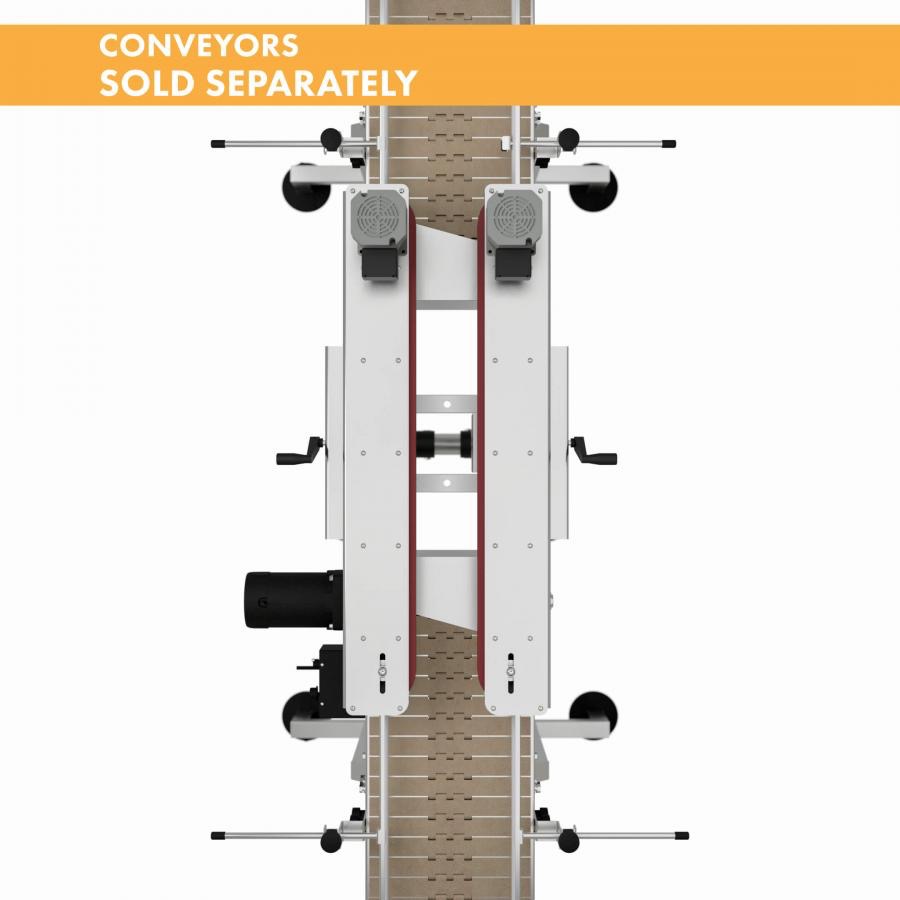

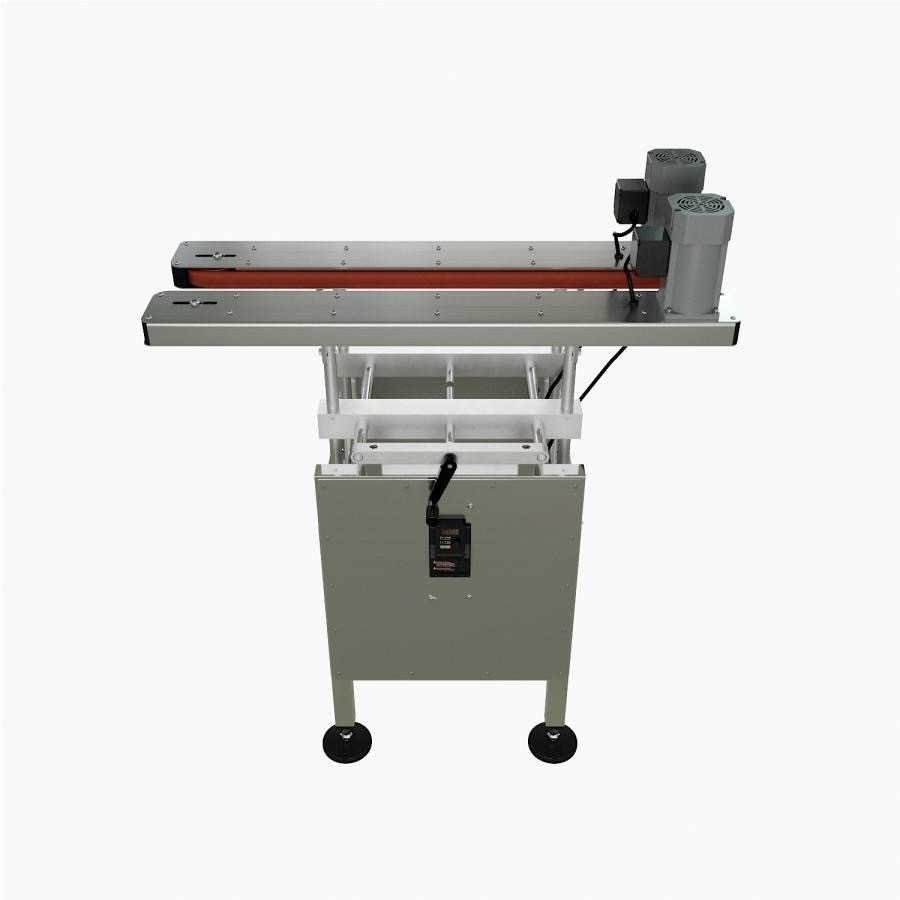

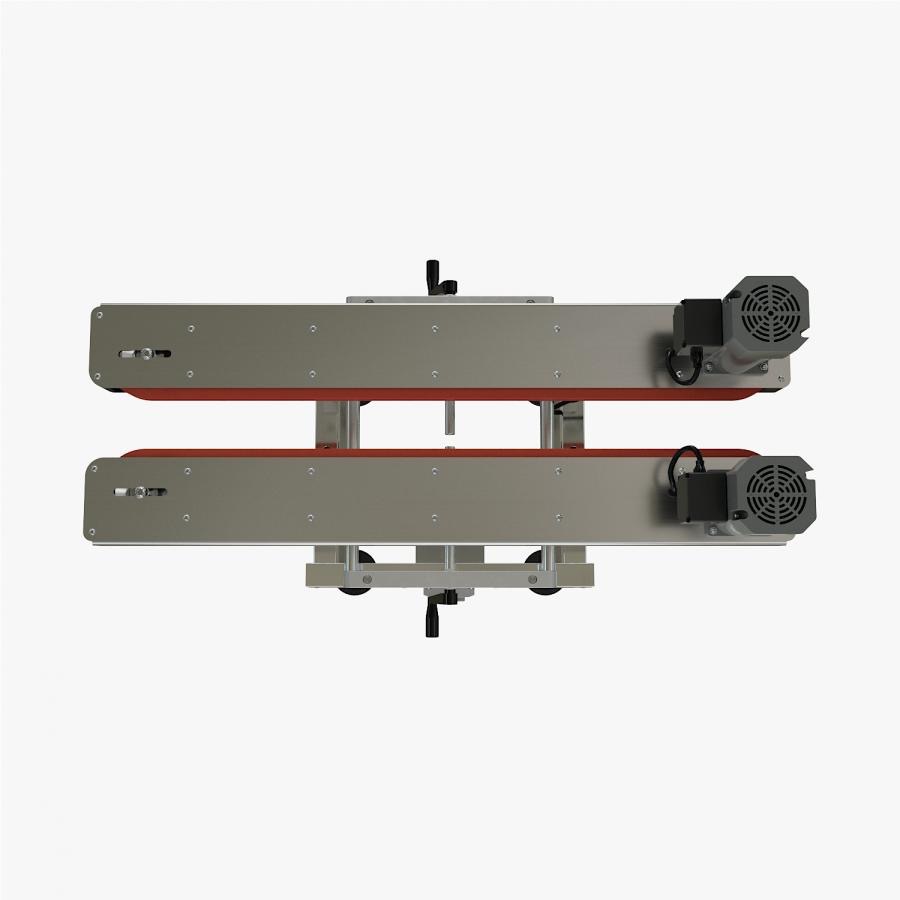

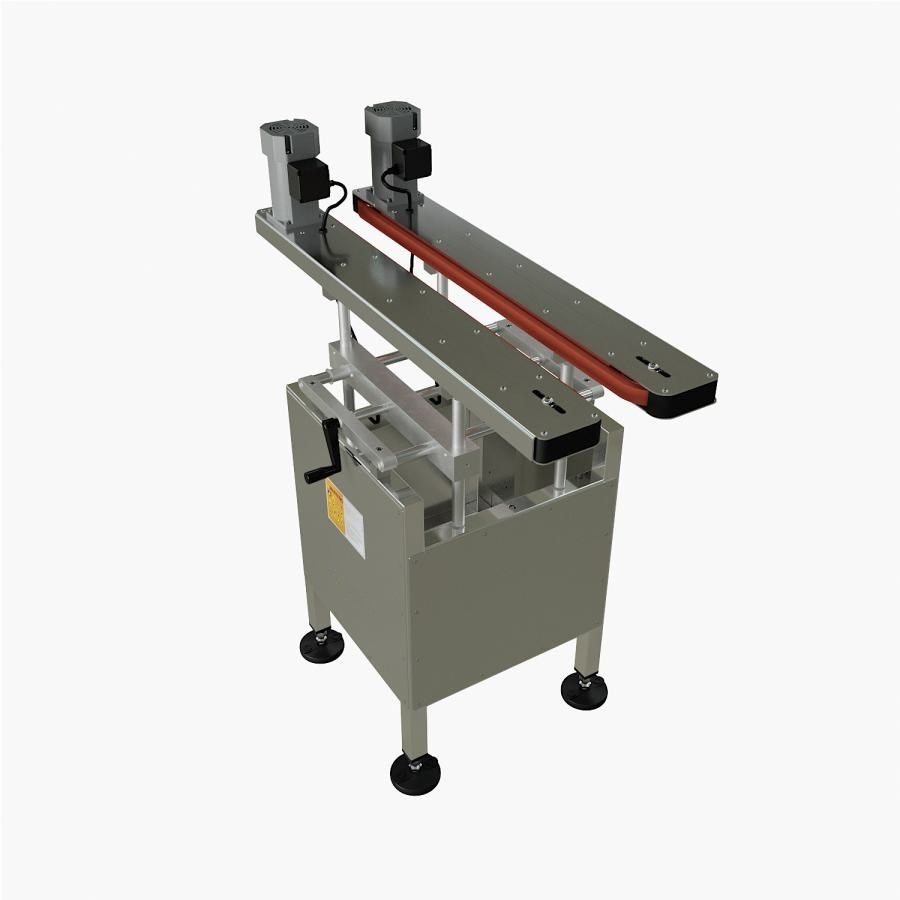

The Hugger Belt Conveyor is a versatile solution engineered for precise container handling and unobstructed bottom access, ideal for coding expiration dates, lot numbers, and other essential markings. Designed for seamless integration between packaging systems, it efficiently transports containers over short distances while maintaining stability and control.

Equipped with adjustable tilt capabilities up to a 45° angle, this system is especially effective for handling tapered or uniquely shaped bottles, ensuring proper positioning and consistent contact during coding or inspection processes.

Main Features

• Made in the USA with 100% UL certified components
• Stainless steel frame
• Operates at speeds up to 80 ft/min
• Built-in pinch point protection for operator safety

Technical Data

• Motor: AC Brother gearmotor, 1/10 HP, 90 RPM, 74 in-lbs, 230 VAC 3PH
• VFD: Teco, Input voltage 115 PH / Output voltage 230 VAC / 3PH
• Electrical requirements: 115 V / 1 PH / 60 Hz / 5.7 Amps
• Adjustable belt opening: 0” to 7 3/4”
• Belt size: 36” L x 1” H
• Floor to belt height: 36” to 42” (set at 37”)
• Overall machine dimensions: 38” L x 24 ½” W x 44” H
• Crated weight: 160 lbs
• Crated dimensions: 42” x 32” x 54”

Optional Features

• Print head bracket
• Bottle sliding plate
• Locking casters

Warranty

• 12 months (limited warranty)
